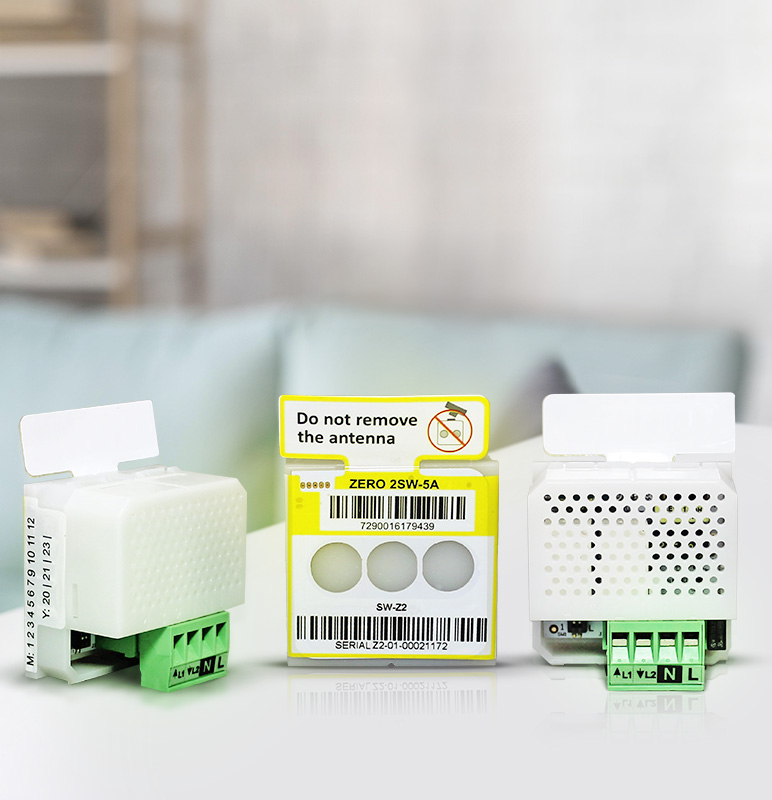

This smart switch is designed to control; one light, two lights, or a single electric shutter.

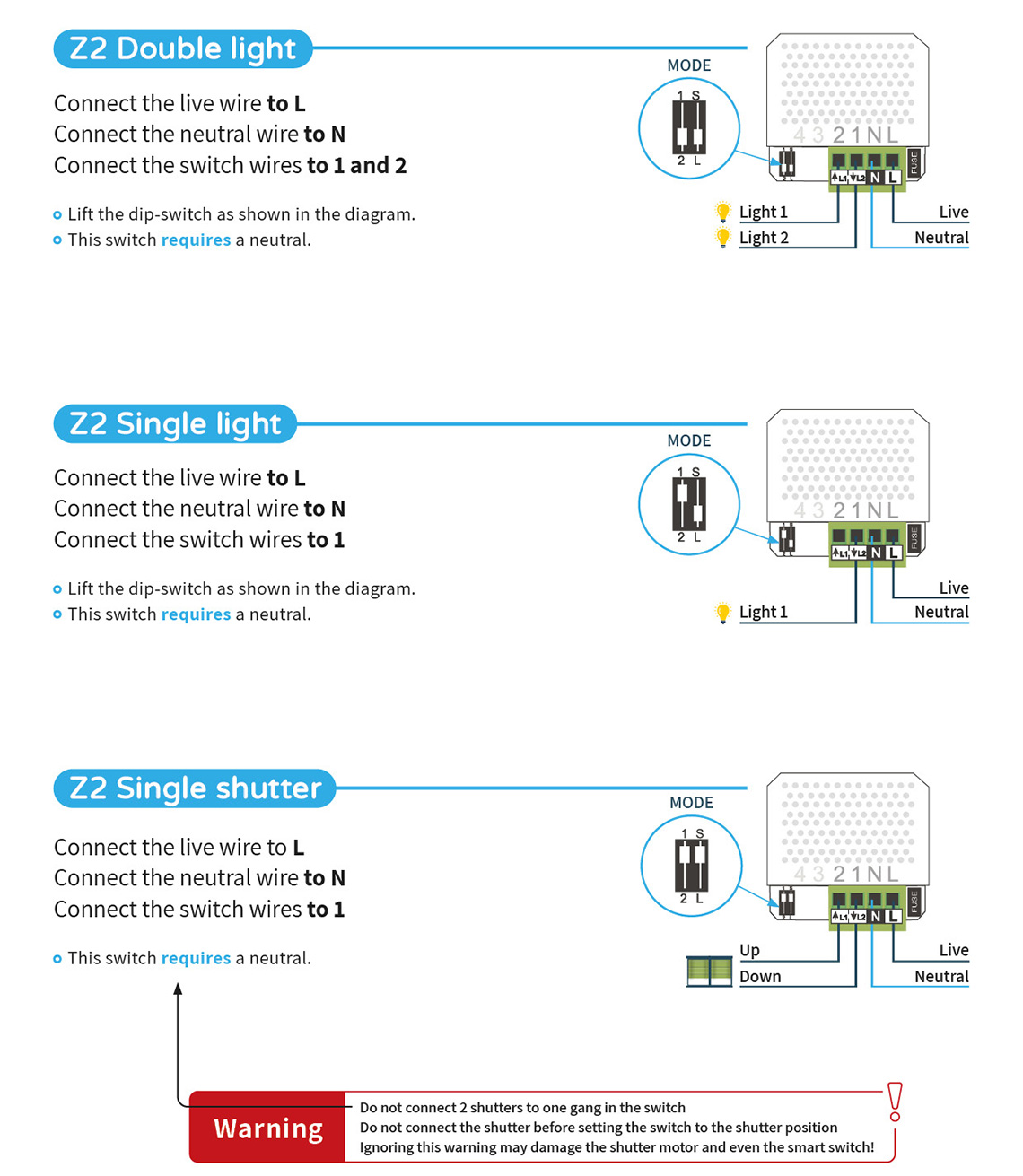

The function of the smart module is configured by dip-switches located on the back of the module.
The switch has a current sensor that protects the switch from overload. It also measures the current consumption of the switch. In shutter mode, the current sensor detects the stopping of the shutter when it fully opens or closes. This allows for precise control of the shutter based on ercentages through scenarios and the App.
This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.
This will turn on background lighting in the switch when your hand nears the panel.
This allows you to set the sensitivity of the touch sensor.
By clicking this button in the application you can see the following data:
Use one switch to control two separate scenarios.
Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.
Change the on/off display colour
of the switch
Simple turn 'on or off' of lighting
or electrical appliance
The ability to group multiple smart
devices and control them together
The ability to dim a dimmable light
The ability to set up a two way
switch (more than one per light)
without wiring
The ability to set activation
time (From 1 second to 7 hours)
The ability to set the opening percentage
of the shutter and the louvers
