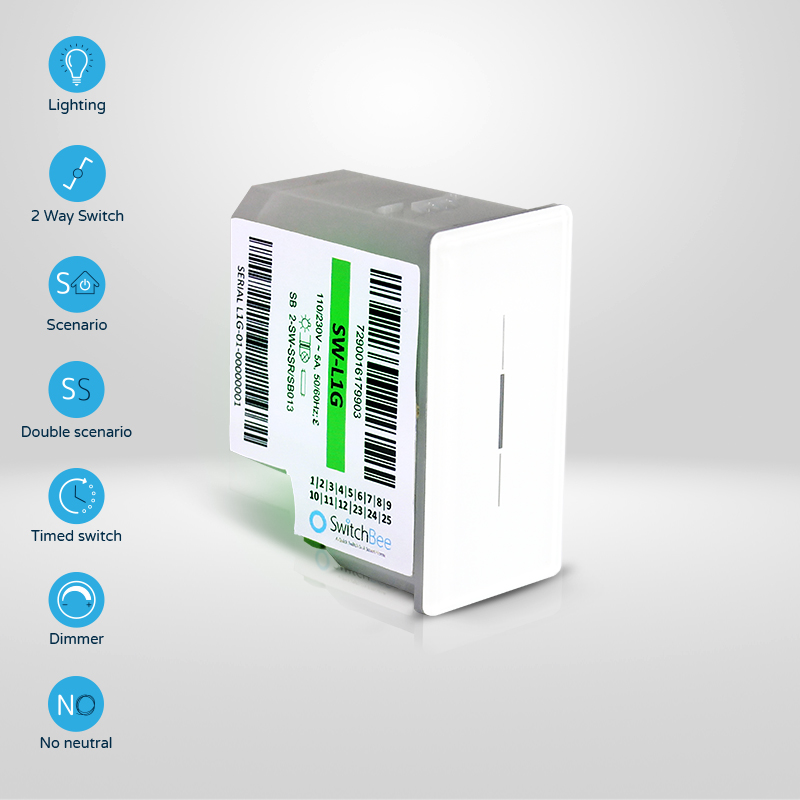

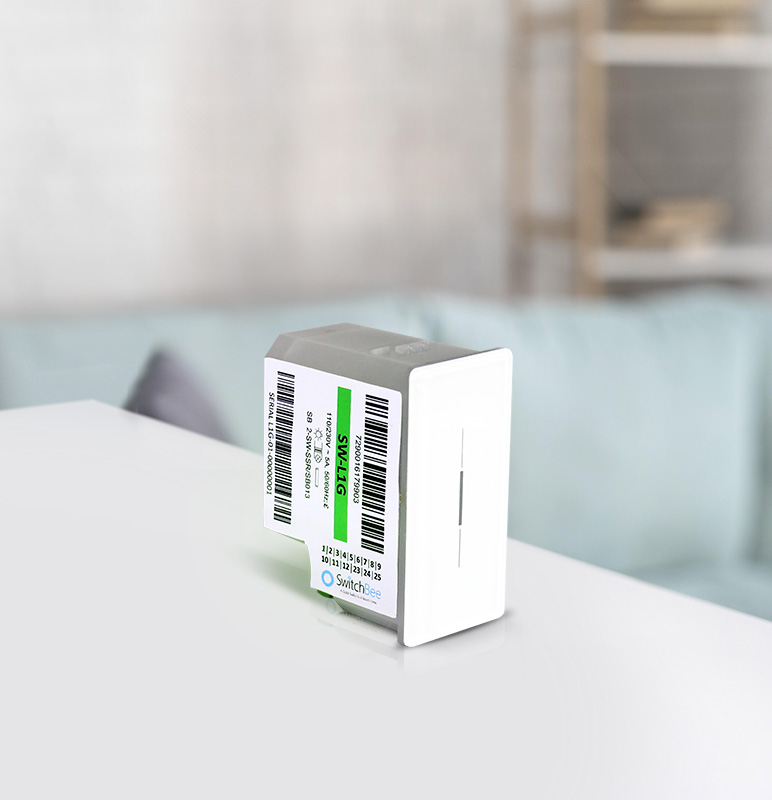

SW-L1G Universal smart switch for a single light 1 gang. without a neutral

Model number: SW-L1G

This smart switch is designed for one light. With a small size of 1 gang (23mm), it can be installed without changing the infrastructure, or rewiring, and does not require a neutral wire. Each gang can be set to turn on/off, dimming, a variety of scenarios, and a timed switch (for example in a stairwell).
The switch has a current sensor which protects the switch from overload. It also measures the current consumption of the switch. The switch optimally turns on the lighting with zero-cross technology, thus preserving and extending the life of the lamps.

Technical Information

Power supply
100-240V | 50-60 Hz
Load range
0-5A
Transmission frequency
433.5-434.5 Mhz
Transmission range
0-1100W
Functionality
Two way switch, scenario switch, shutter switch, louver shutter switch. Double scenario switch
Background lighting
Shade of color and brightness can be set in the application
Current sensor
0-30A
Protections and safety
on/off, two-way switch, scenario switch, dimmer switch, timed switch, double scenario switch
Dimensions
height 46 mm, width 23 mm, depth 30 mm (1 place)

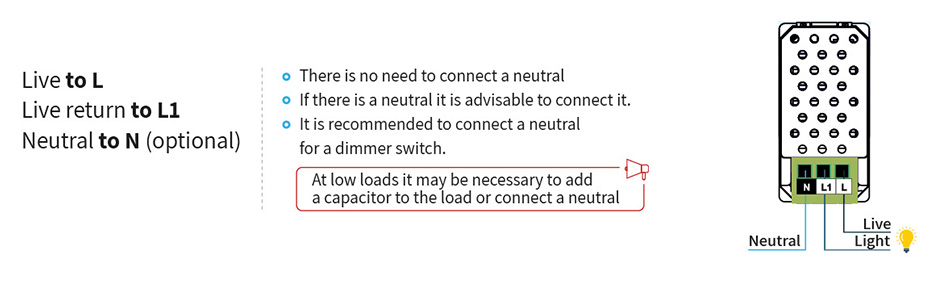

Installation instructions

Additional advanced functions

This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.

This will turn on background lighting in the switch when your hand nears the panel.

This allows you to set the sensitivity of the touch sensor.

By clicking this button in the application you can see the following data:

  • RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
  • RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
  • CURRENT // The current passing through the switch. Measured by the current sensor.
  • VERSION // Software version of the switch.

Use one switch to control two separate scenarios.

Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.

Change the on/off display colour
of the switch

Configurable

Multifunctional configuration - One module fits All
Set - Backlight Color and intensity
Set - Proximity sense
Set - Touch Sensitivity
Set - Response time
Set - Lock
Standard switch= On/Off

Simple turn 'on or off' of lighting
or electrical appliance

Scenario Switch

The ability to group multiple smart
devices and control them together

Dimmer Switch

The ability to dim a dimmable light

Two Way Switch

The ability to set up a two way
switch (more than one per light)
without wiring

Timed Switch

The ability to set activation
time (From 1 second to 7 hours)

Shutter / Curtain / Louvers

The ability to set the opening percentage
of the shutter and the louvers
