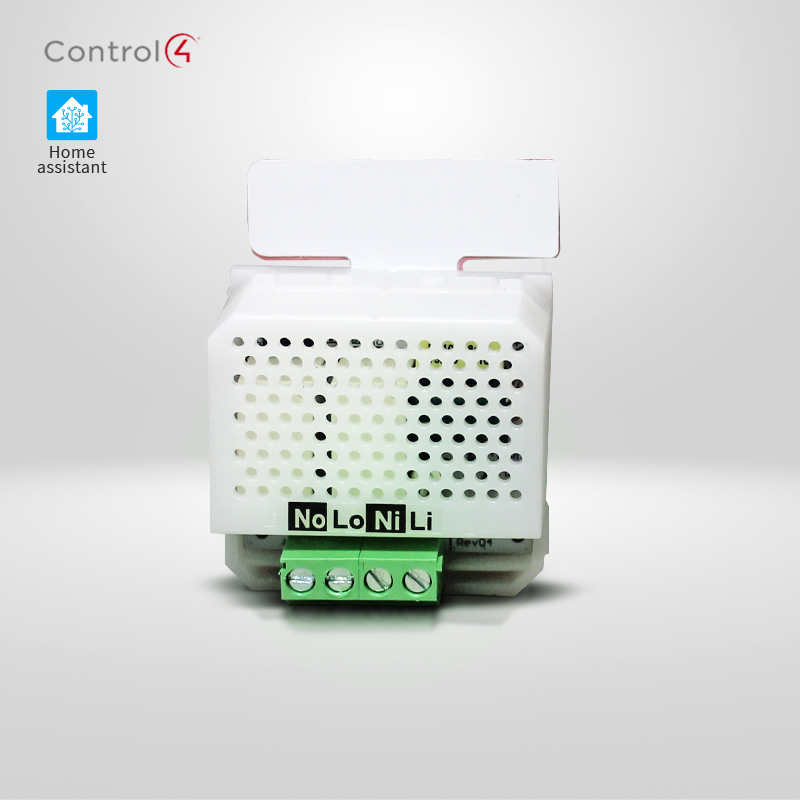

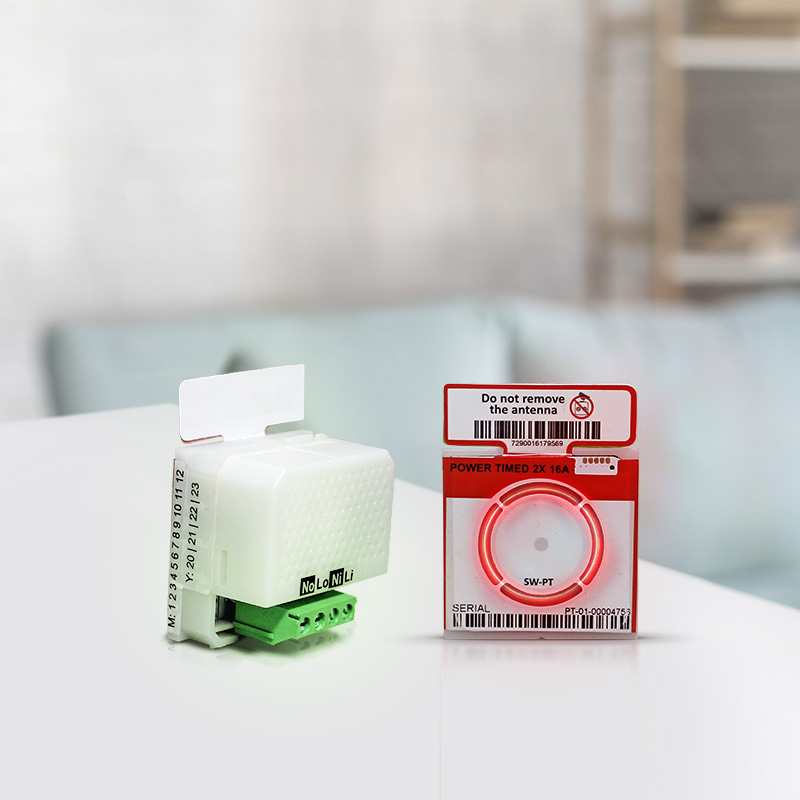

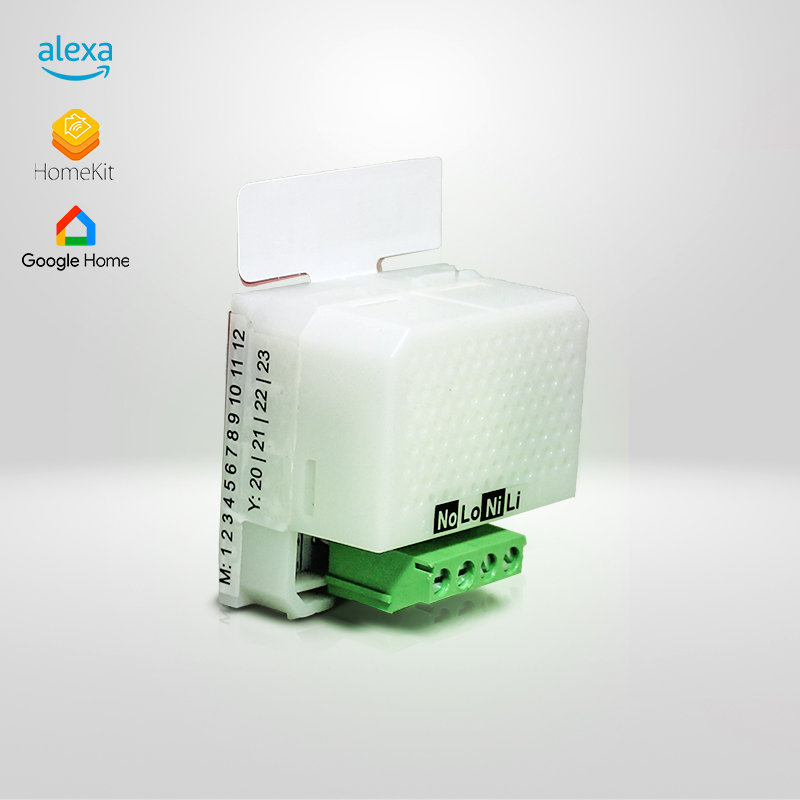

SW-PT smart switch for boiler/heater 16A double-pole

Model number: SW-PT

This smart module is designed for an electric boiler or heater. The switch is double-pole for live and neutral. It can be installed without changing the infrastructure and wiring.

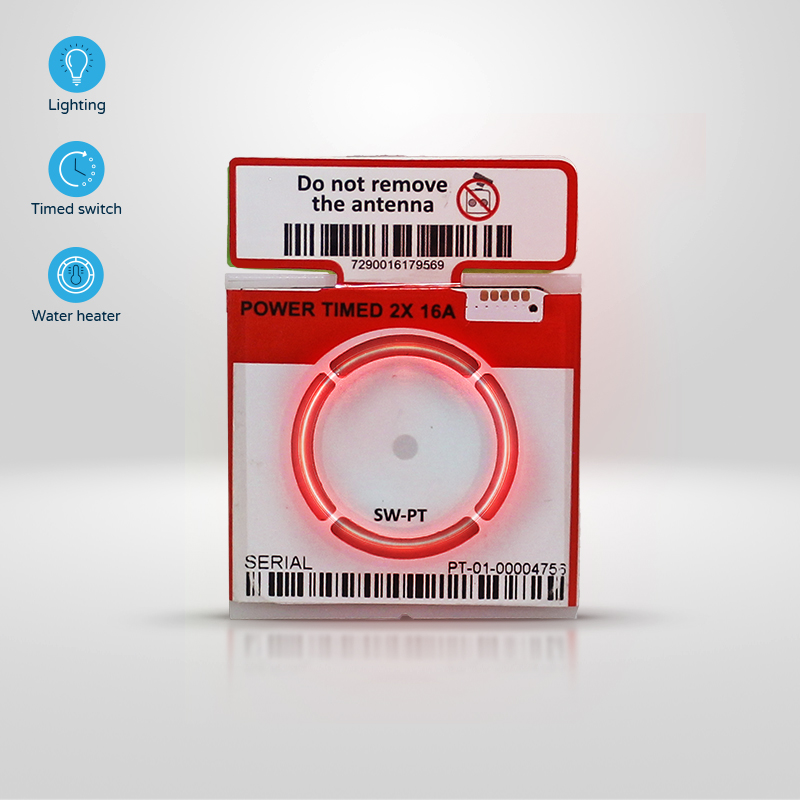

The switch can be set as an on/off switch or as a timed switch. The configuration is done in the App when pairing the switch. The switch has four illuminated segments. Each segment indicates a half hour. Each press of the switch adds a half hour to the timer up to two hours. It is possible to turn on the switch for up to 5 hours in the App. The switch has a current sensor which protects the switch from overload. It also measures the current consumption of the switch.

Technical Information

Power supply

100-240V | 50-60 Hz

Load range

0-16A (3500VA)

Transmission frequency

433.5-434.5 Mhz

Transmission range

up to 100M

Functionality

on/off, timed on

Background lighting

Shade of color and brightness can be set in the application

Current sensor

0-30A

Protections and safety

double protection: 1// Thermal fuse for protection against overheating. 2// Current sensor protection

Dimensions

height 44 mm, width 44 mm, dep th 30 mm

custom

Compatible with a variety of decorative panels

Installation instructions

Additional advanced functions

This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.

This will turn on background lighting in the switch when your hand nears the panel.

This allows you to set the sensitivity of the touch sensor.

By clicking this button in the application you can see the following data:

RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
CURRENT // The current passing through the switch. Measured by the current sensor.
VERSION // Software version of the switch.

Use one switch to control two separate scenarios.

Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.

Change the on/off display colour
of the switch
