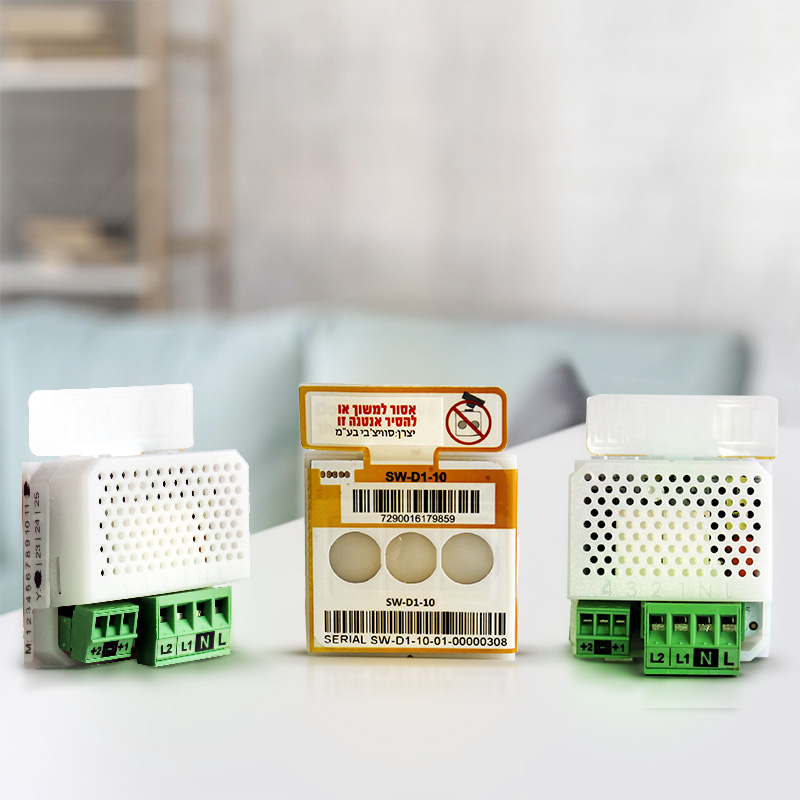

SW-D1-10 smart module

Model number: SW-D1-10

This switch is designed to control a single or double light, with a dimming module of 0-10 or 1-10.
The dimmer module 1-10 enables precise control of the light, through the DC control voltage output provided by the smart switch. When at 10 volts the light will be at full brightness. At 1 volt the light fixture will dim at the lowest brightness. When the switch is set to 0% (by pressing manually or in the app) the switch will turn off the power to the light. (see installation instructions below).
The switch controls up to 2 lights, each of them can be set as a dimmer 1-10, or normal a light, a two way switch, scenario switch and more.
The switch has a current sensor which protects the switch from overload. It also measures the current consumption of the switch.technology, thus preserving and extending the life of the lamps.

Technical Information

Power supply

100-240V | 50-60 Hz

Load range

0-1100W

Transmission frequency

MHz 433.5-434.5

Transmission range

Up to 100M

Functionality

Dimmer 1-10 (0-10), on/off, two way switch, scenario switch, timed switch.

Background lighting

Shade of color and brightness can be set in the application

Current sensor

0-30A

Protections and safety

Triple protection: //1 thermal fuse for overheating. //2 current sensor protection. //3 fuse protection 5A

Dimensions

Length 44 mm, height 44 mm, depth 30 mm

custom

Adapted to a variety of decorative panels

Installation instructions

Additional advanced functions

This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.

This will turn on background lighting in the switch when your hand nears the panel.

This allows you to set the sensitivity of the touch sensor.

By clicking this button in the application you can see the following data:

RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
CURRENT // The current passing through the switch. Measured by the current sensor.
VERSION // Software version of the switch.

Use one switch to control two separate scenarios.

Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.

Change the on/off display colour
of the switch
