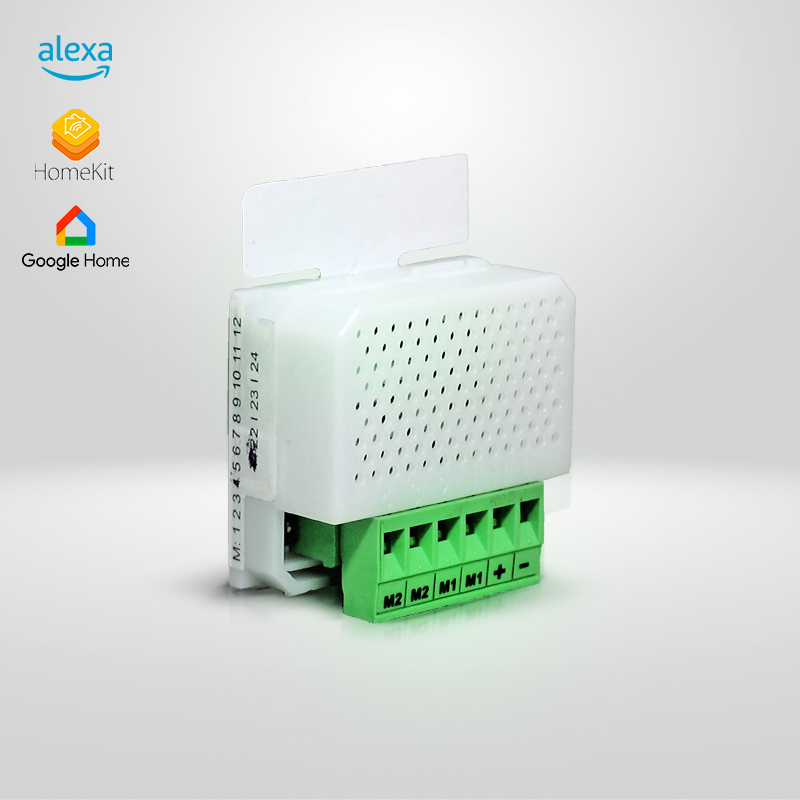

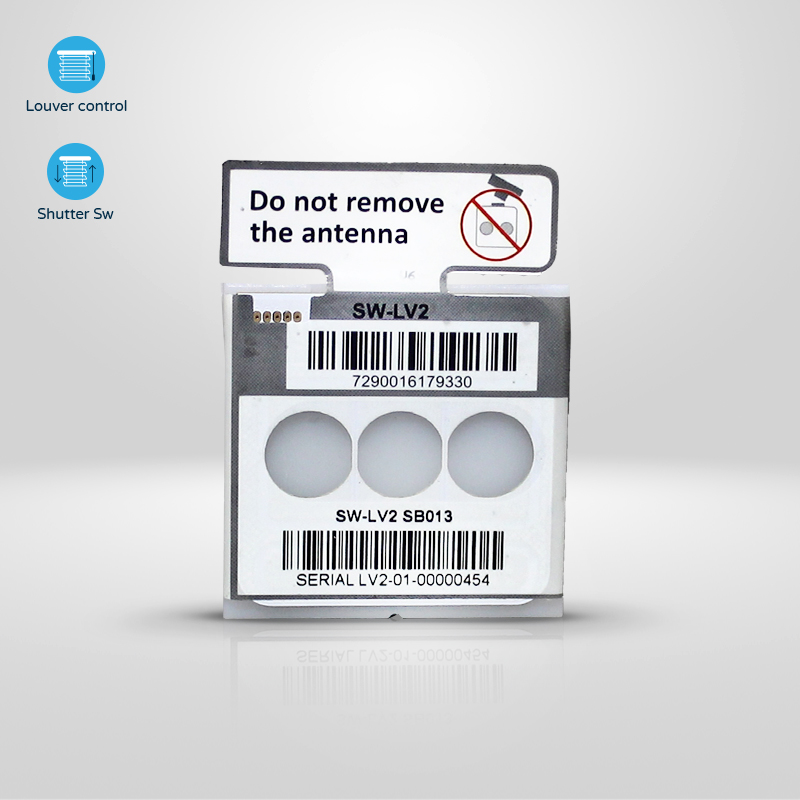

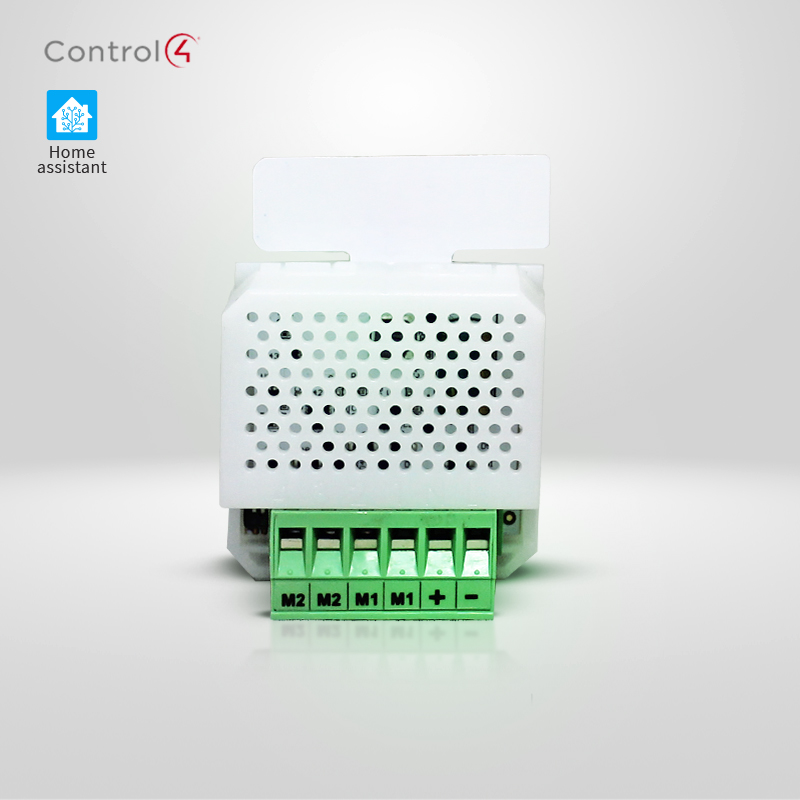

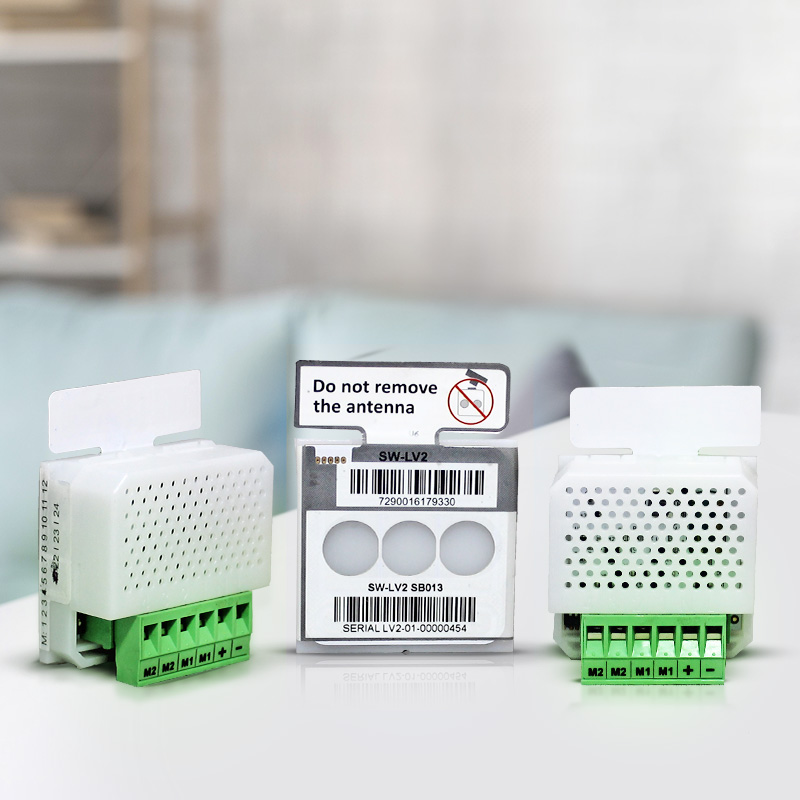

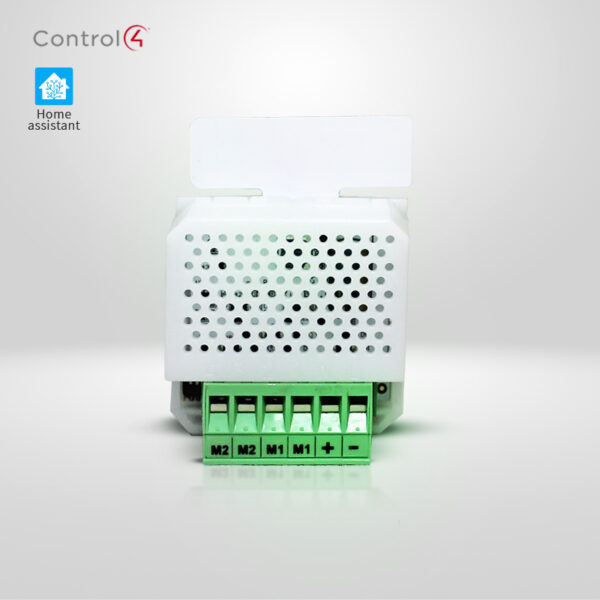

SW-LV2 Switch 2 gang

Model number: SW-LV2

This smart switch has 2 gangs. Each gang can be configured to control a DC shutter between 6-32 volts and a current of up to 1.5 amps.
The switch has a current sensor that protects the switch from overload. It also measures the current consumption of the switch. The current sensor detects the stopping of the shutter when it fully opens or closes. This allows for precise control of the shutter based on percentages through scenarios and the App.
The smart switch is designed for a variety of blinds. Read the instructions carefully and match the smart switch to the shutter using the app and the dip switch located on the back of the module.

Technical Information

Power supply
6-32VDC
Load range
0-1.5A per channel
Transmission frequency
MHz 433.5-434.5
Transmission range
up to 100M
Functionality
on/off, Two way switch, scenario switch, delay switch, shutter and louvered shutter
Background lighting
Shade of color and brightness can be set in the application
Current sensor
0-30A
Protections and safety
current sensor protection, protection against reverse voltage
Dimensions
height 44 mm, width 44 mm, depth 30 mm (1 place)
custom
Adapted to a variety of decorative panels

Installation instructions

Additional advanced functions

This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.

This will turn on background lighting in the switch when your hand nears the panel.

This allows you to set the sensitivity of the touch sensor.

By clicking this button in the application you can see the following data:

  • RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
  • RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
  • CURRENT // The current passing through the switch. Measured by the current sensor.
  • VERSION // Software version of the switch.

Use one switch to control two separate scenarios.

Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.

Change the on/off display colour
of the switch

Configurable

Multifunctional configuration - One module fits All
Set - Backlight Color and intensity
Set - Proximity sense
Set - Touch Sensitivity
Set - Response time
Set - Lock
Standard switch= On/Off

Simple turn 'on or off' of lighting
or electrical appliance

Scenario Switch

The ability to group multiple smart
devices and control them together

Dimmer Switch

The ability to dim a dimmable light

Two Way Switch

The ability to set up a two way
switch (more than one per light)
without wiring

Timed Switch

The ability to set activation
time (From 1 second to 7 hours)

Shutter / Curtain / Louvers

The ability to set the opening percentage
of the shutter and the louvers

Tutorial Videos

Add dimmable switch Play Video
Add dimmable switch
Add two way switch Play Video
Add two way switch
Add timed switch Play Video
Add timed switch
Add regular scenario switch Play Video
Add regular scenario switch
Add group scenario switch Play Video
Add group scenario switch
Set/Edit Timers Play Video
Set/Edit Timers
