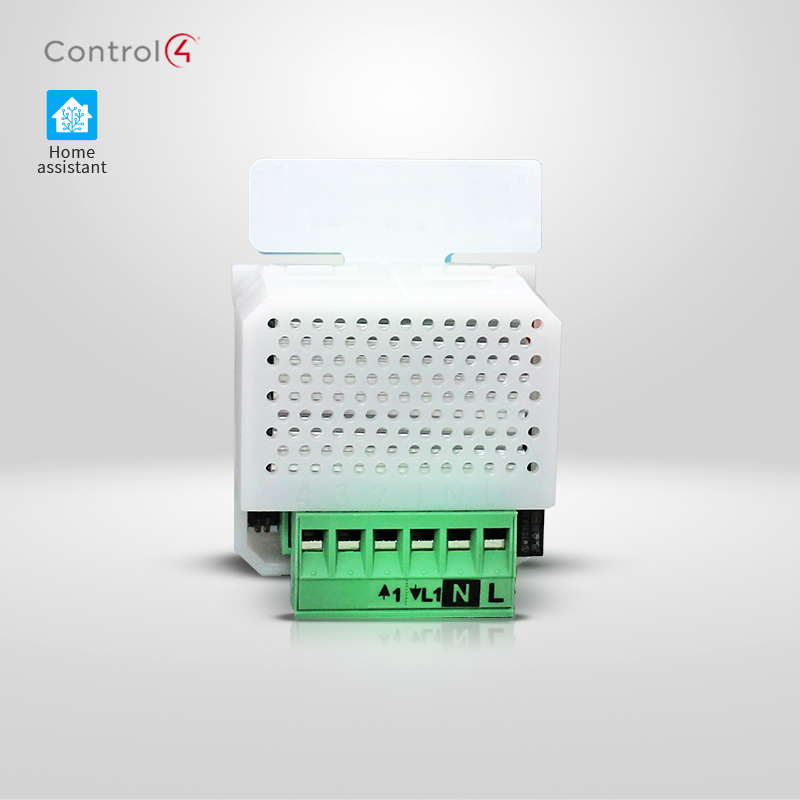

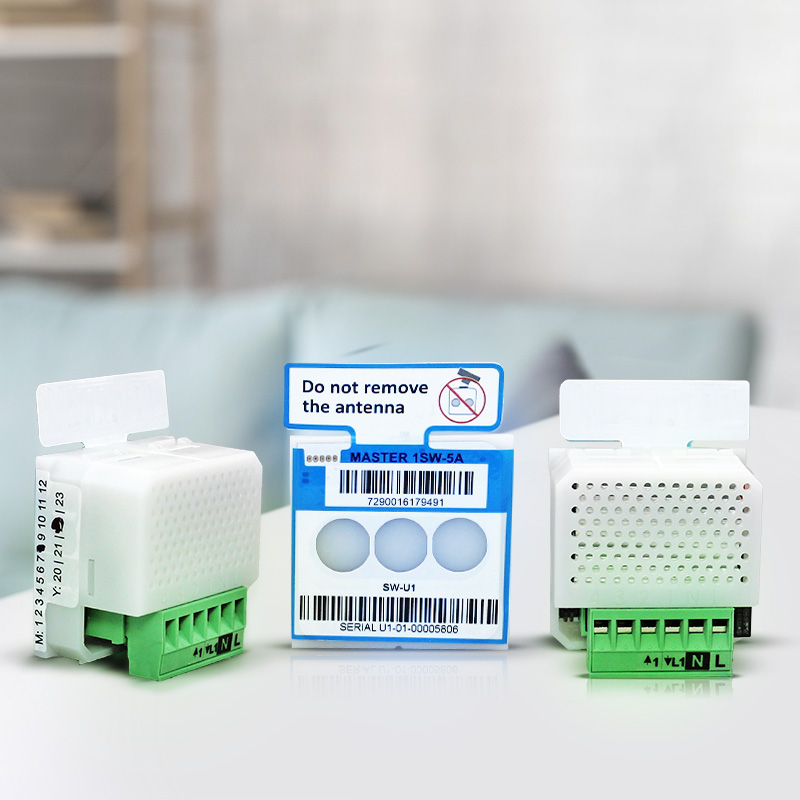

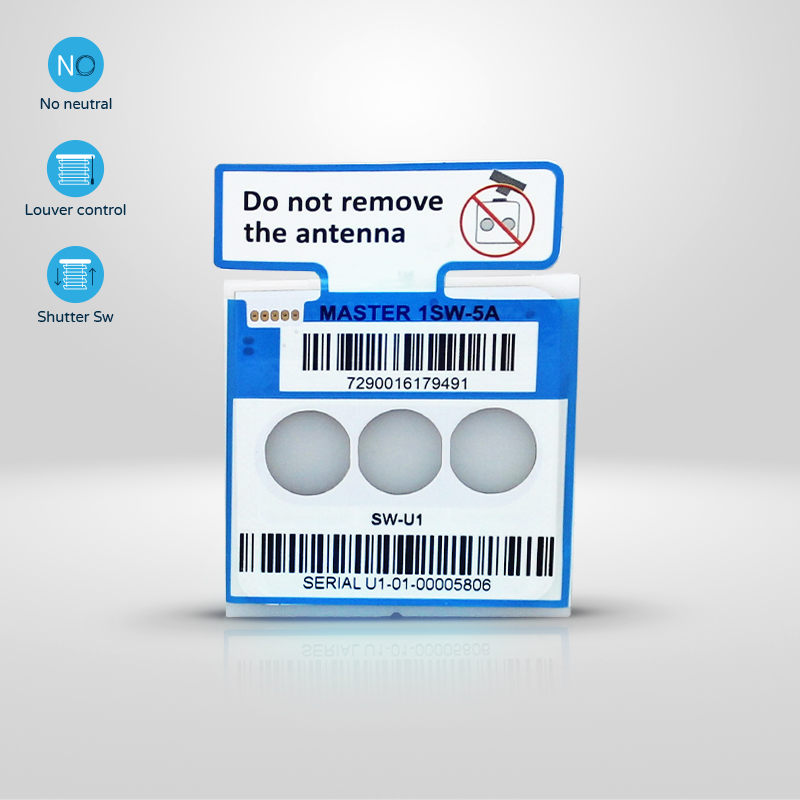

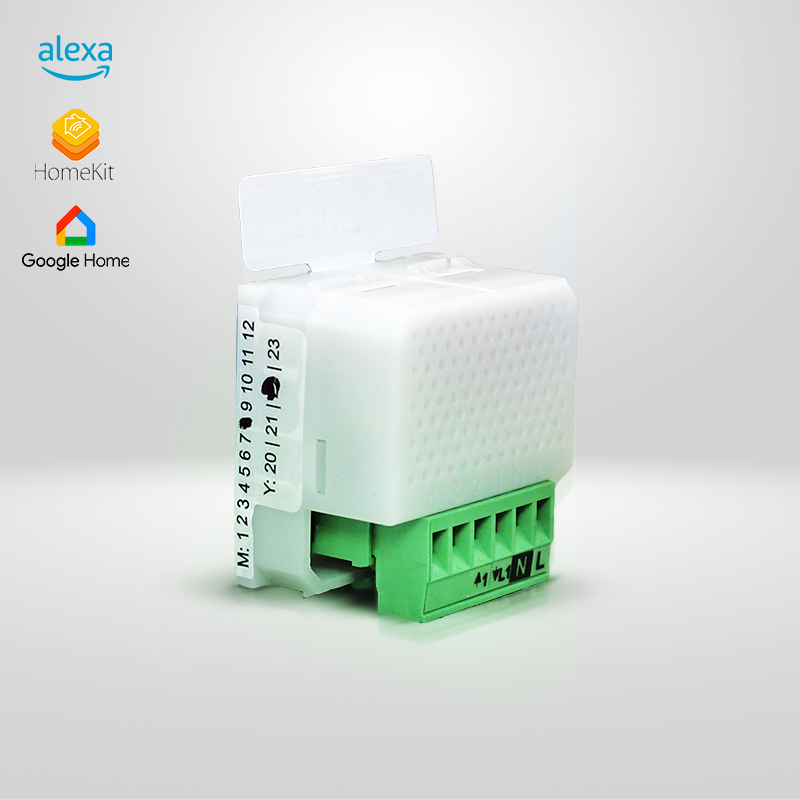

SW-U1 Universal smart module to control a single shutter. without a neutral

Model number: SW-U1

This smart switch controls a single shutter.
The switch has a current sensor that protects the switch from overload. It also measures the current consumption of the switch. In shutter mode, the current sensor detects the stopping of the shutter when it fully opens or closes. This allows for precise control of the shutter based on percentages through scenarios and the App.

Technical Information

Power supply

100-240V | 50-60 Hz

Load range

0-5A

Transmission frequency

433.5-434.5 Mhz

Transmission range

up to 100M

Functionality

on/off, two way switch, scenario switch, timed switch, shutter switch, louver shutter switch, double scenario switch

Background lighting

Shade of color and brightness can be set in the application

Current sensor

0-30A

Protections and safety

Triple protection: 1// Thermal fuse for protection against overheating. 2// Current sensor protection. 3// 5A fuse protection

Dimensions

height 44 mm, width 44 mm, depth 30 mm

custom

Compatible with a variety of decorative panels
