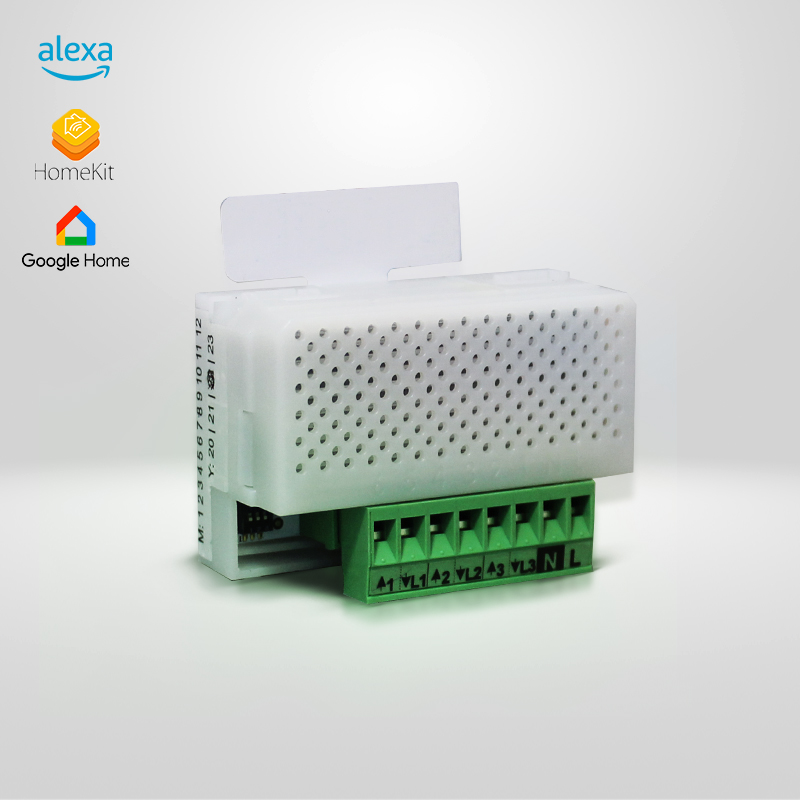

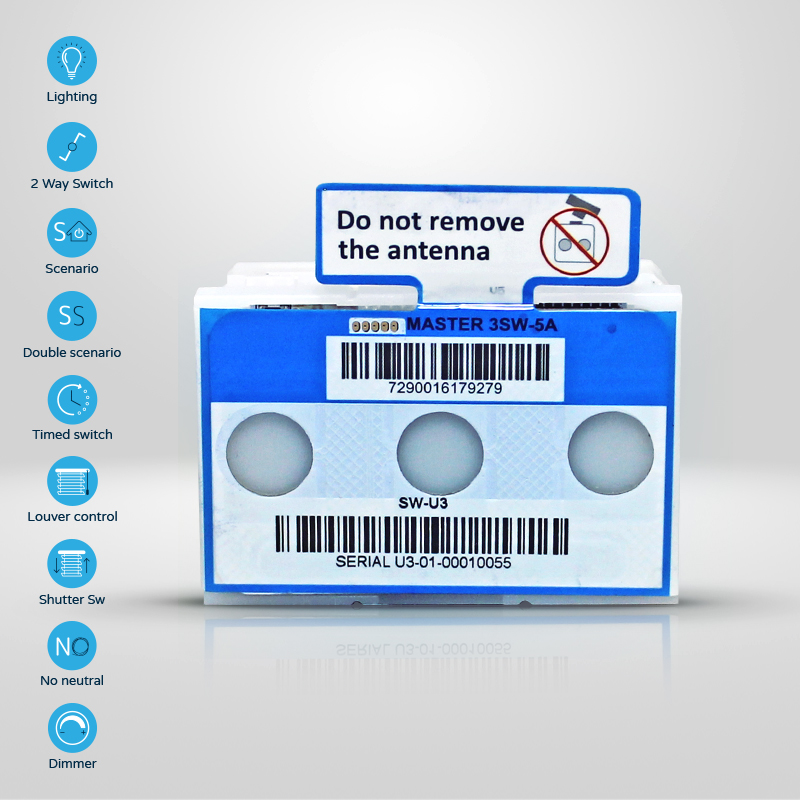

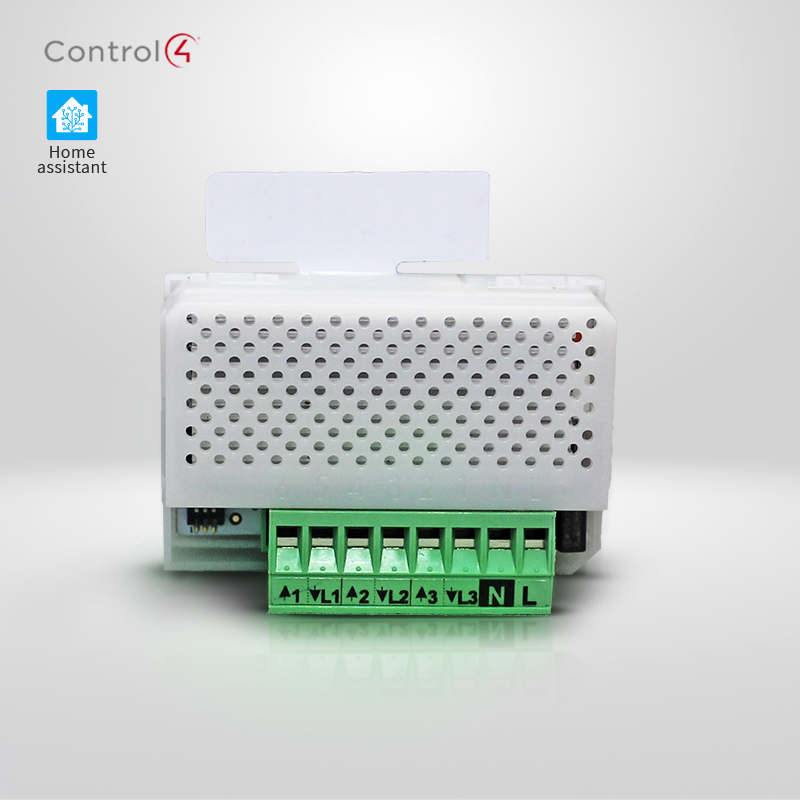

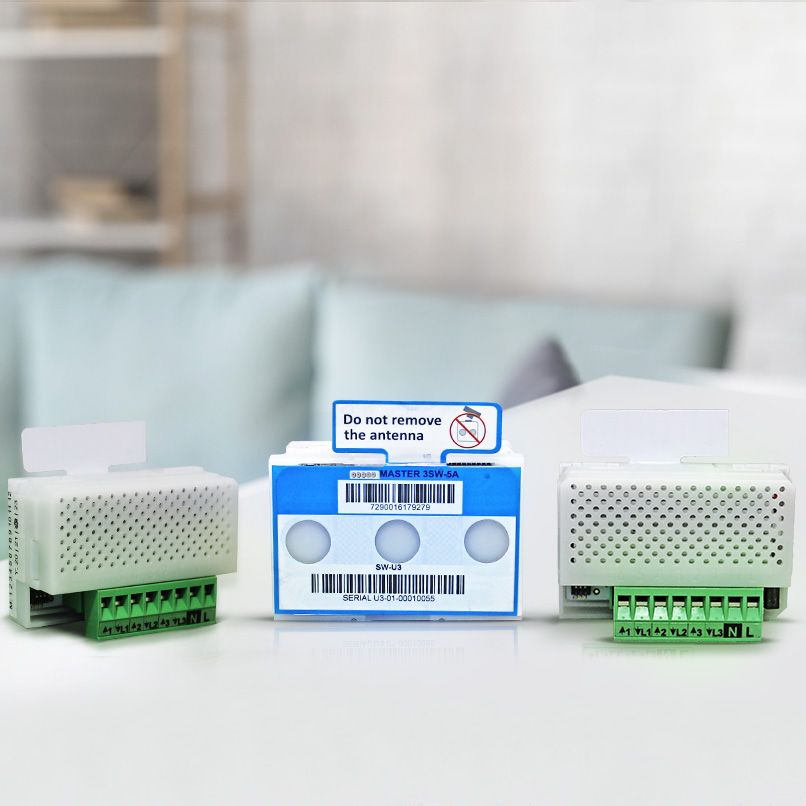

SW-U3 Universal smart switch with 3 shutter/light gang. without a neutral

Model number: SW-U3

This smart switch has 3 gangs. Each gang can be configured to control a shutter or light.
For example, the module can be set to control 3 shutters, 2 shutters and a light or a shutter with 2 lights and more. The configuration of the switch is determined by the dip-switches located on the back of the switch.
The switch has a current sensor that protects the switch from overload. It also measures the current consumption of the switch. In shutter mode, the current sensor detects the stopping of the shutter when it fully opens or closes. This allows for precise control of the shutter based on percentages through scenarios and the App.

Technical Information

Power supply

100-240V | 50-60 Hz

Load range

0-5A

Transmission frequency

433.5-434.5 Mhz

Transmission range

up to 100M

Functionality

on/off, two way switch, scenario switch, timed switch, shutter switch, louver shutter switch. Double scenario switch

Background lighting

Shade of color and brightness can be set in the application

Current sensor

0-30A

Protections and safety

Triple protection: 1// Thermal fuse for protection against overheating. 2// Current sensor protection. 3// 5A fuse protection

Dimensions

height 66 mm, width 44 mm, depth 30 mm

custom

Compatible with a variety of decorative panels

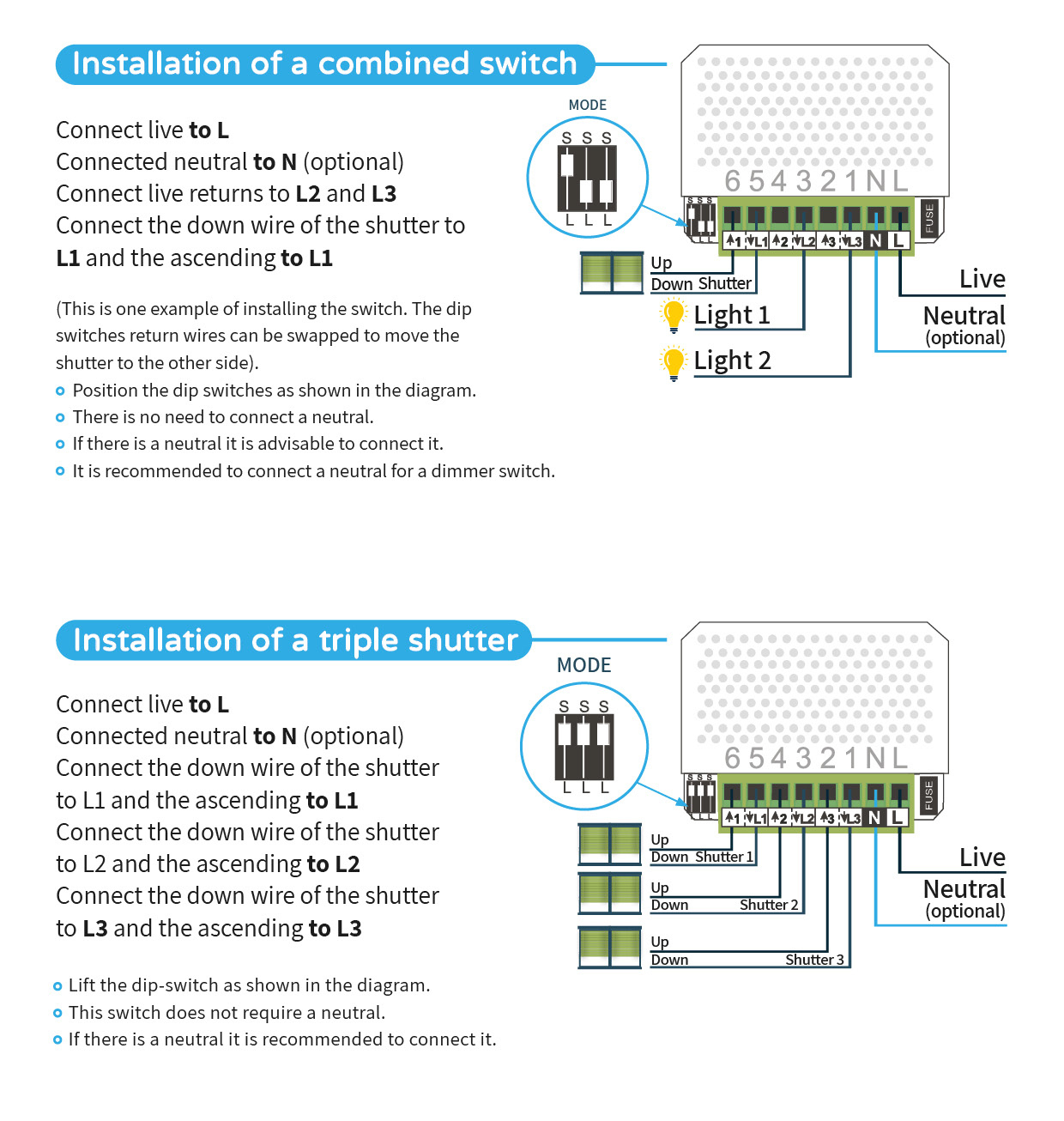

Installation instructions

Additional advanced functions

This will disable the physical switch, however the switch will still operate from the application. It is also possible to create a scenario that can lock a group of switches. You are also able to create a timer that will operate the lock scenario.

This will turn on background lighting in the switch when your hand nears the panel.

This allows you to set the sensitivity of the touch sensor.

By clicking this button in the application you can see the following data:

RSSI-EU // Signal strength from the central unit to the switch. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
RSSI-AP // Signal strength from the switch to the central unit. Signal over 100 is excellent reception. Signal 80-100 ok. Lower than 80 is bad.
CURRENT // The current passing through the switch. Measured by the current sensor.
VERSION // Software version of the switch.

Use one switch to control two separate scenarios.

Change the length of time needed to touch the switch until it operates. Useful when you want to prevent accidental touches from triggering the switch. For example, a delayed press on a scenario to turn off multiple switches.

Change the on/off display colour
of the switch
